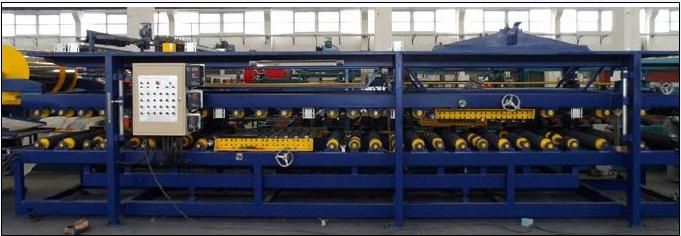

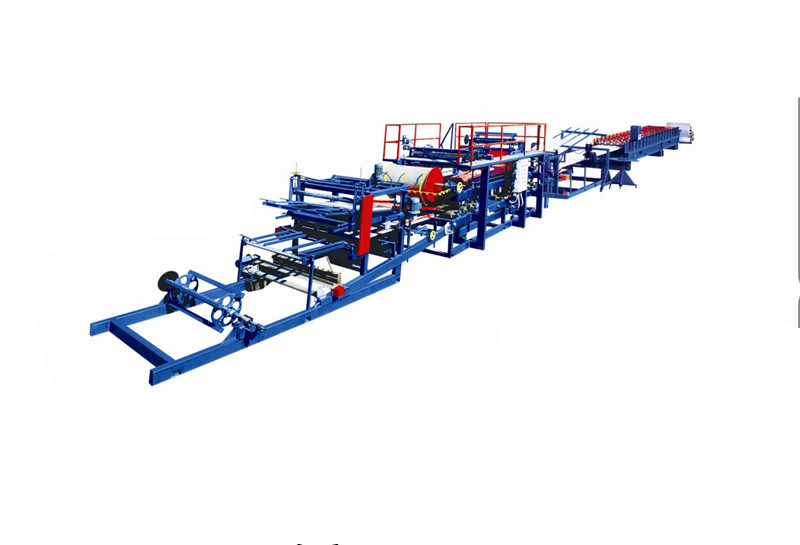

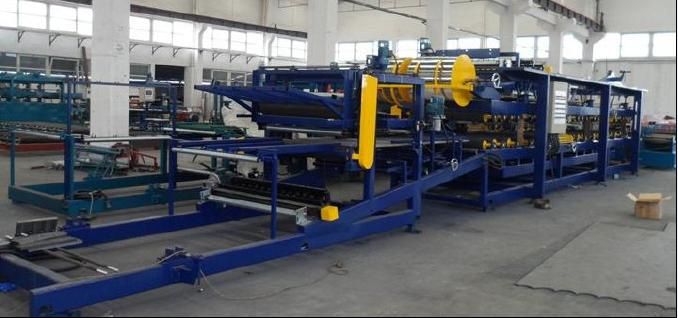

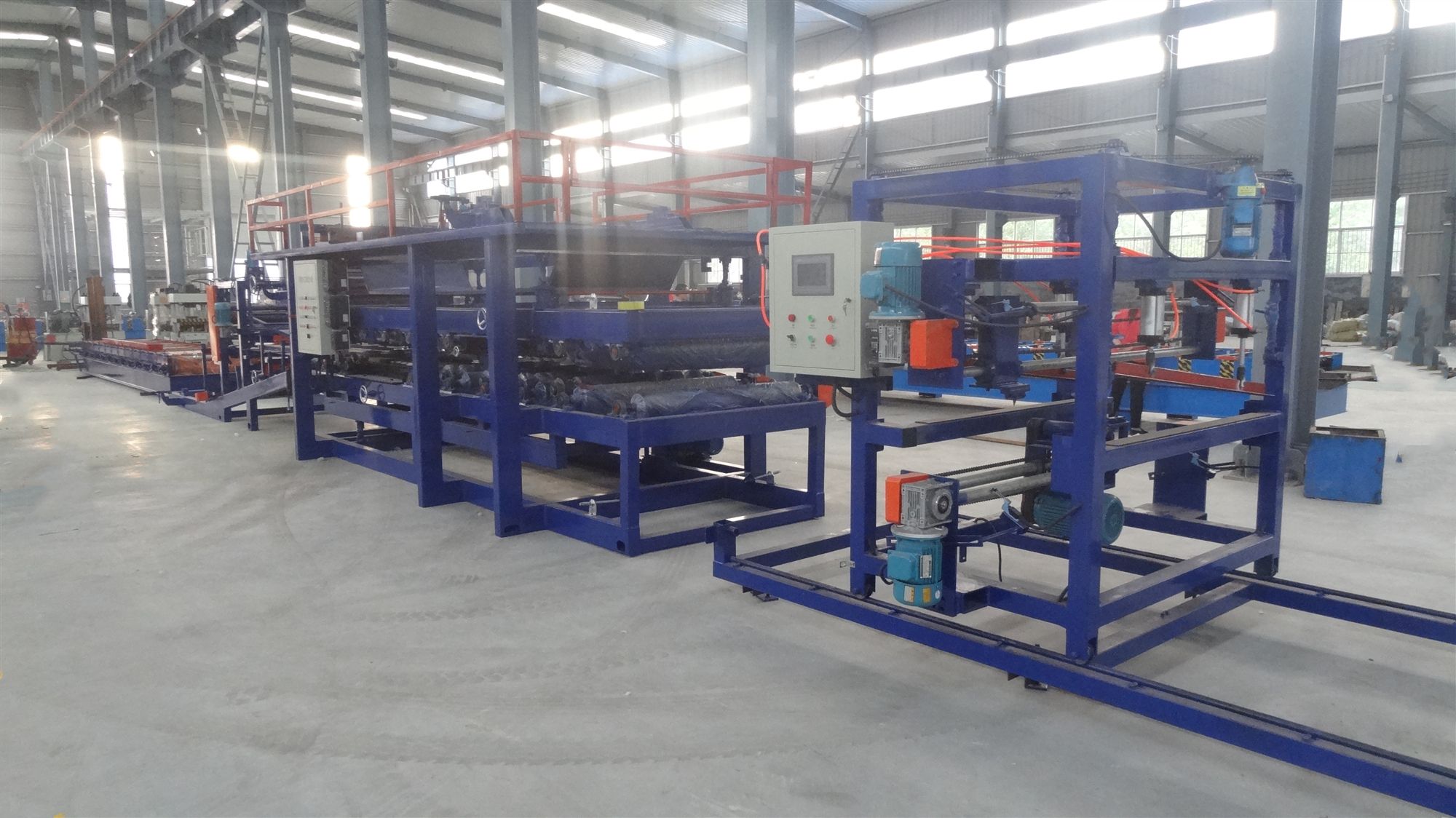

Machine Appearance
Main Components
Main Advantage
(1) All production line with air,electricity,machinery to manufacture color steel roolwool special machinery.
(2) This line is controlled by computer stepless speed adjustment, to make sure the stable working and easy operation.can be as the customer’s request, the length is controlled by computer,with actural procision location on the touch-screen also with automatic counting and modification.
(3) Finished production can be designed and modified by as customer’s request.
Main Components:
1. Roofing Sheet Roll Forming Machine
2. EPS/Rockwool Foam Panel Feeding Platform
3. Composited System for Panels
4. Automatic PLC Control System
5. Automatic Tracking Cutting System
6. Receiving Table
All production line with air,electricity,machinery to manufacture color steel roolwool special machinery.
This line is controlled by computer stepless speed adjustment, to make sure the stable working and easy operation.can be as the customer’s request, the length is controlled by computer,with actural procision location on the touch-screen also with automatic counting and modification.
Finished production can be designed and modified by as customer’s request.
Technical Specification
Voltage Standard:AC380/50-60Hz
Main Motor Power:32KW
Production Line Speed:4-6m/min
Installation Size:33000×4000×2800

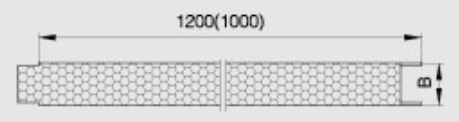

Finished Production Size:1000mm 1200mm
Finished Production Thickness:50-300mm
Output Production per year:600,000 square meters
Processing Sketch
Decoiler:ecoiling the steel coil to feed the plate into roll formign machine,
Roll Forming System:Single layer roll forming the roofing sheet
Up-layer feed into the composited machine.
EPS/Rockwool Pieces feeding system:put the raw material in the middle
Using the gluewater on the surface of color steel.
Heating to be better sticked well for the steel plate and EPS/Rockwool piece.
Edging
Composited at the same time
lear the rib and making the edges.
Confirm the length
PLC to control the length and quantity
Output Production

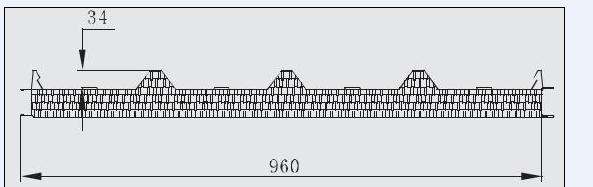

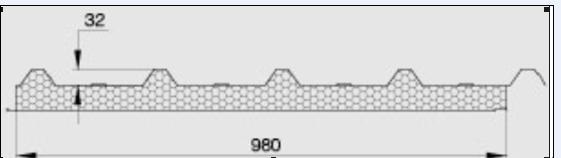

Production Parameters
