Machine Appearance
Main Components
Technical Specification
Working Process

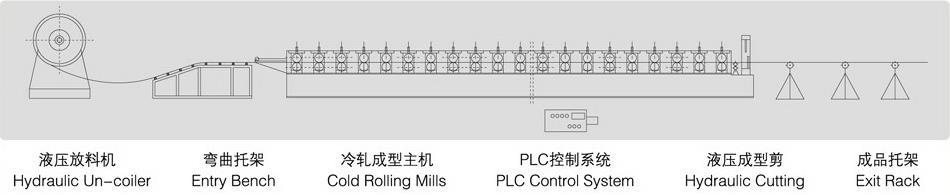

The complete roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep prodcts accurate.
Machine Parameters
NO | Type | Specification | |
1 | Raw material | Type | PPGI/GI |
Material width | 1250mm | ||
Thickness | 0.3-0.6 mm | ||
2 | Decoiler | Operation | Manual |
Weight apacity | 5 Tons | ||
3 | Roll Forming Machine | Roller station | 20 steps |
Diameter of shaft | 70 mm-0.01~0.03 | ||
Shaft Material | 45# with 0.05mm chrome | ||
Roller Material | 45# Forged Steel | ||
Transmission | Gear & Sprocket | ||
Bearing Type | 6210 | ||
Under Frame | H-beam | ||
Sidewall Frame | 16 mm Steel Plate | ||
Driving Type | AC 5.5KW | ||
Cutting Type | Guide Pillar with Electrical Motor 3.0KW | ||
Cutting Blade | Cr12Mov | ||
Voltage | 380V/50HZ, 3 phase | ||
Working speed | 30-35 m/min | ||
5 | Control box | Electric box | Import Brand PLC control system, inventer |
PLC brand | Delta/Touch-Win | ||
Inverter brand | Delta/Riding | ||
Language | Chinese / English | ||
Production Parameters
